Unit 00225 – 203 HP, Sweet, Reciprocating Compressor
Specifications
| Unit Number | 225 |
| HP | 203 |
| RMP | 1800 |
| Service | Sweet |
| Stages | 1/2 |
| Packager | Propak |

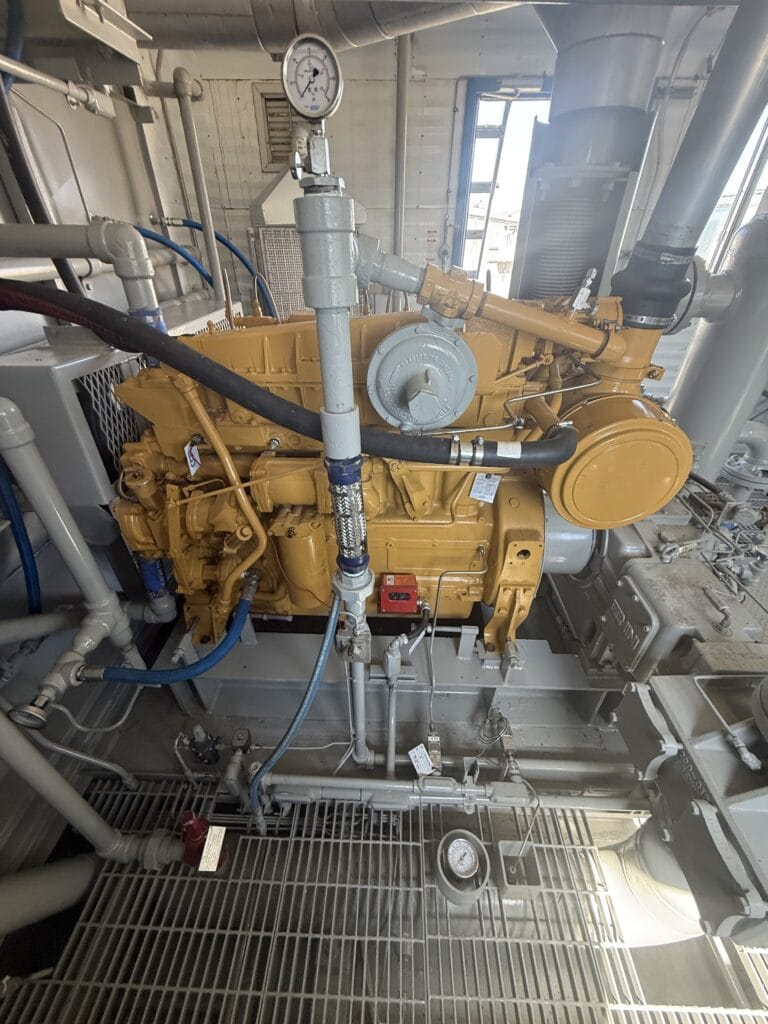

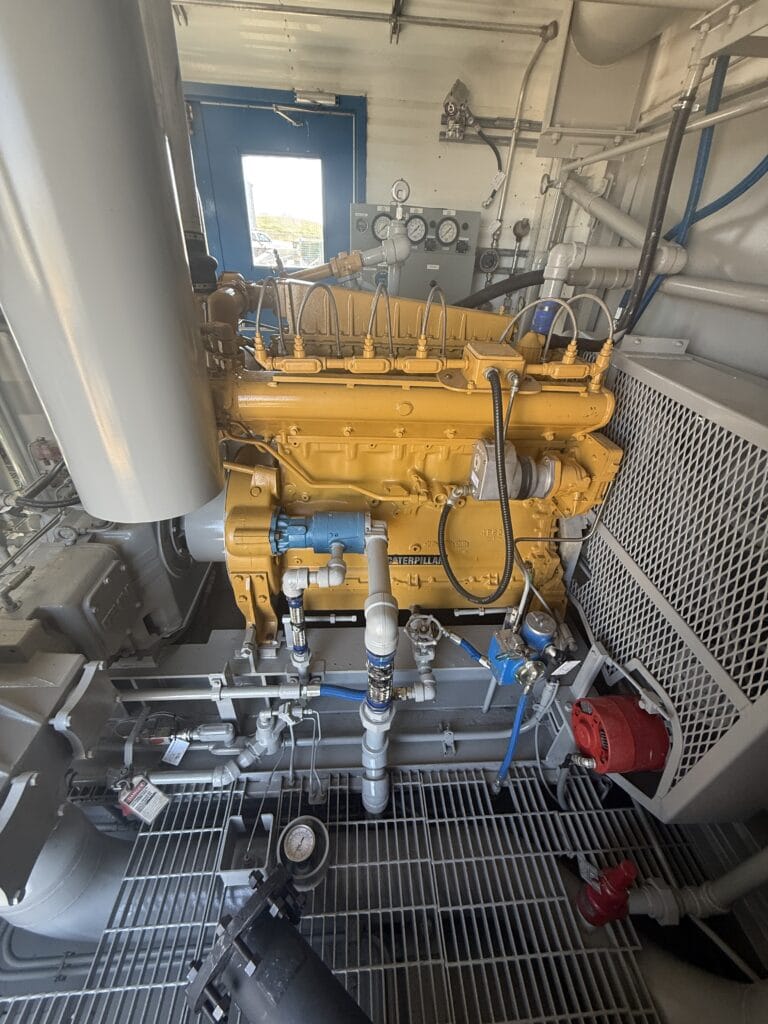

| Driver | Caterpillar 3306TA |

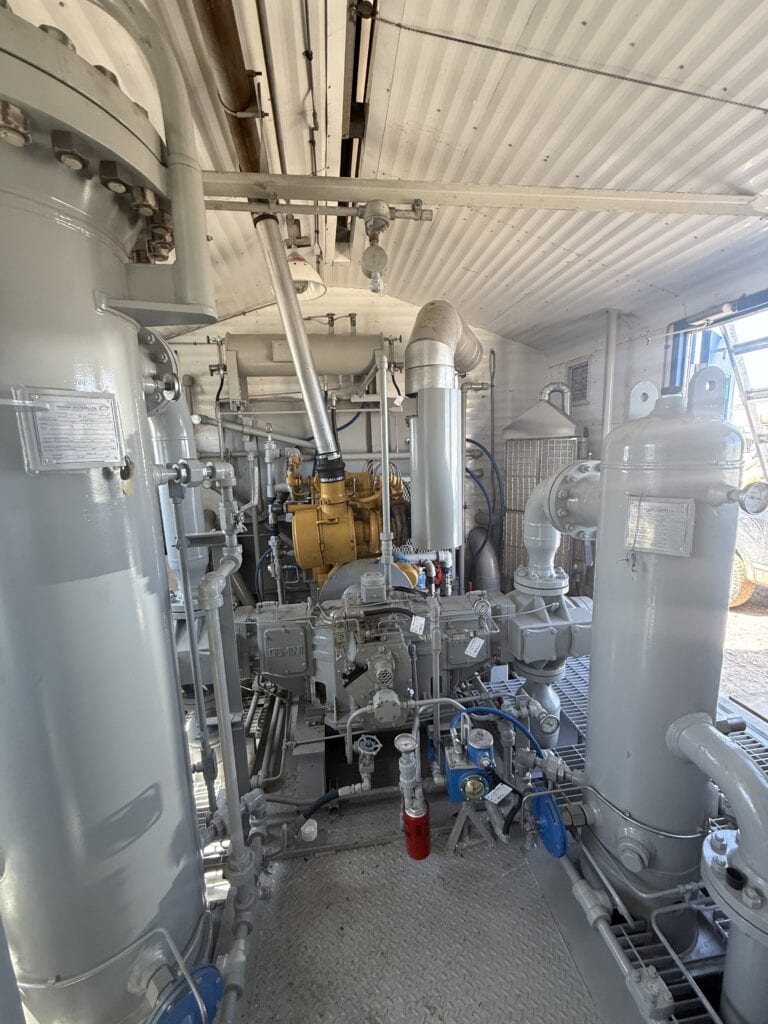

| Compressor | Gemini H302 |
| Stage 1 | (2) 6.5″ |
| Stage 2 | N/A |
| Stage 3 | N/A |
| Stage 4 | N/A |
| Cooler | ACE J3A |
| Control Panel | Altronic |
| Base | Skid |

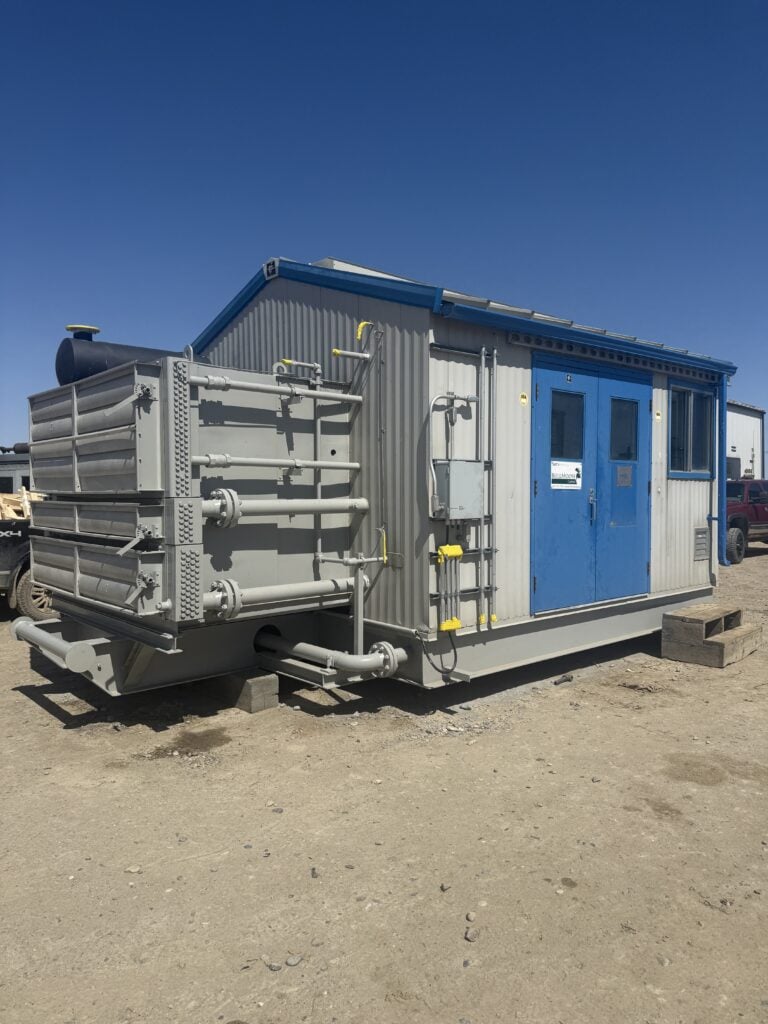

| Building | Yes |
| Heaters | 12VDC Catadyne |
| Silencer | Critical Grade |
| Suction MAWP | 655 PSIG |
| Discharge MAWP | 1292 PSIG |
| Crane | No |
Options
| Suction Control Valve | Yes |
| Bypass | Manual |
| Blowdown | Manual |
| Instrument supply | Gas |
| Auto louvres (gas) | No |
| Cooler Drive | Jackshaft |
| Seal Pot System | No |
| Vacuum Pump System | No |
| Building Electrical | Yes |
| B149 | Option |
